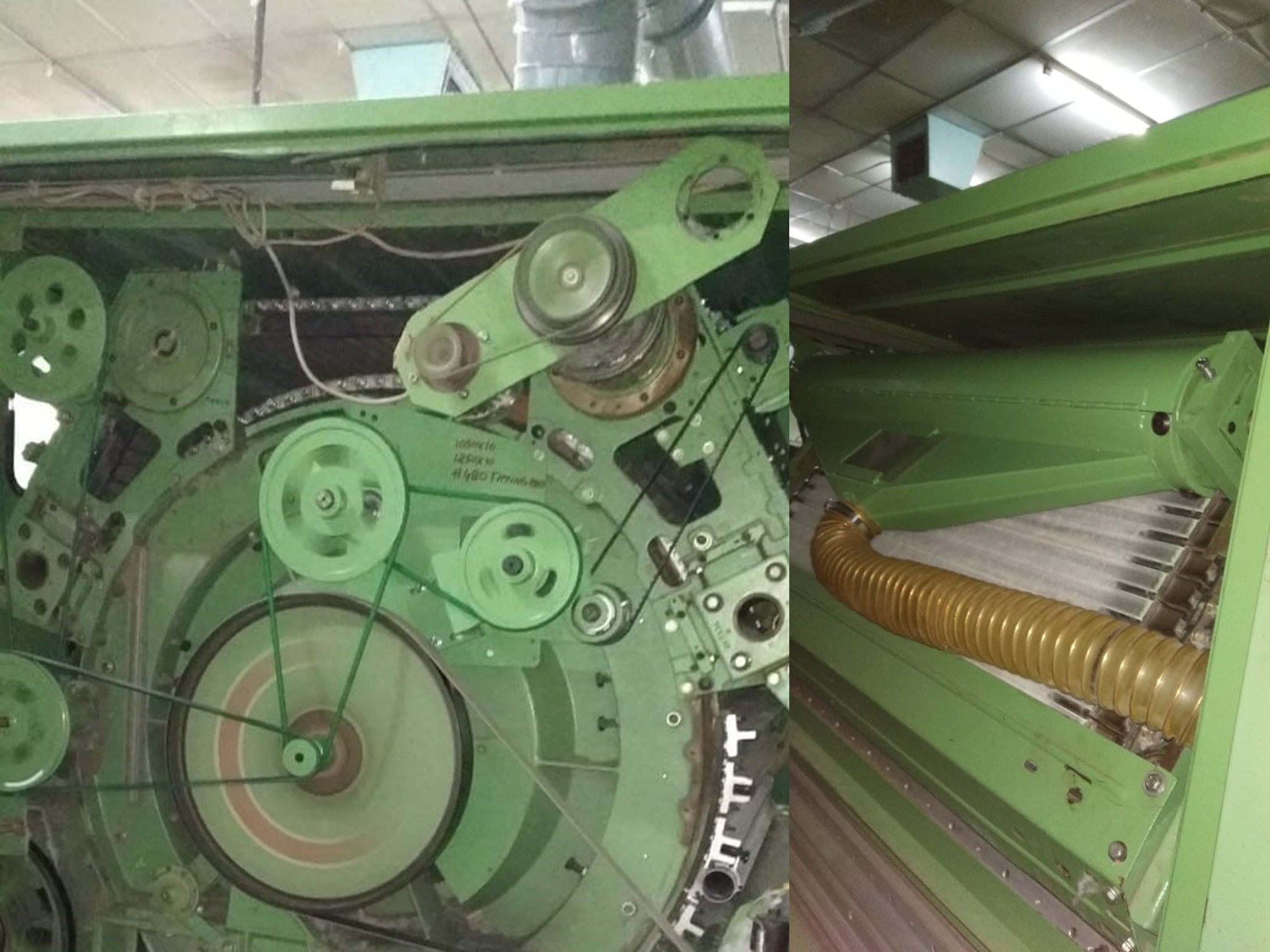

Flat Strip Removal Kit

A cam-driven oscillating fillet-bar kit that continuously removes flat strips from flat tops and directs them to the waste suction hood—reducing manual intervention and stabilizing flat cleanliness on selected Rietr card models.

Machine-aligned supply for Rieter C4,4A,C10, Rieter C50, Rieter C51.
Quoted and tracked under product code VCU-002.

Request quote WhatsApp

Overview

Flat Strip Removal Kit

Certain Rieter card models use a cyclo-drive flat stripping media that is no longer actively supported and can be difficult to maintain in stable working condition. When flat strip removal becomes inconsistent, flat tops progressively load up and carding behaviour begins to drift.

The Flat Strip Removal Kit is a replacement concept built around an oscillating fillet-bar cleaning media driven by a cam taken from the main cylinder. It is engineered to remove flat strips reliably and direct them to the waste collection suction hood through a simple, controlled flow path.

What the kit does

Removes flat strips from flat tops using a dedicated fillet-bar cleaning media
Sends removed strips automatically to the waste collection suction hood (gravity-assisted flow)
Provides an easily adjustable cam drive for stable cleaning action

Construction concept

Cleaning media using FB 25 fillet driven by a cam mechanism
Self-cleaning 8-row fillet arrangement for effective removal action
Designed as a low-intervention system intended to be maintenance-light in operation

Applicability (selected platforms)

This kit is supplied only for selected Rietr card models: RC4, RC10, RC50, RC51. Suitability is confirmed during RFQ based on machine configuration and current stripping arrangement.
